Roller Hearth Bar Heating Furnace -SOLD!-
SOLD

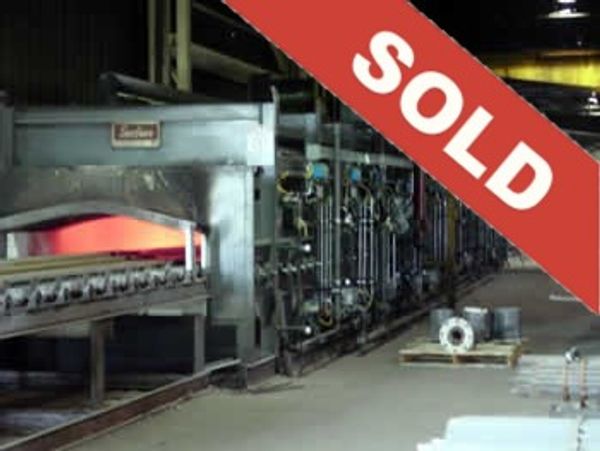

Surface Combustion Roller Hearth Bar Heating Furnace (Large)
Year build: 1975
Description: Surface Combustion roller hearth furnace for heating bar stock. Effective work size is 5-inch-3-inch wide x 10-inch high clearance x 83-inch-3-inch long. Heating capacity is 6500 lbs./hr. to 1575 deg. F. New Eclipse -inchThermJet-inch direct-fired burner system in six (6) zones of control installed in 2004. New motor and burner control panel with Honeywell UDC controllers and MIC paperless recorder installed in 2004. New furnace wiring installed in 2004.
Continuous Mesh Belt Furnace -SOLD!-
E-029

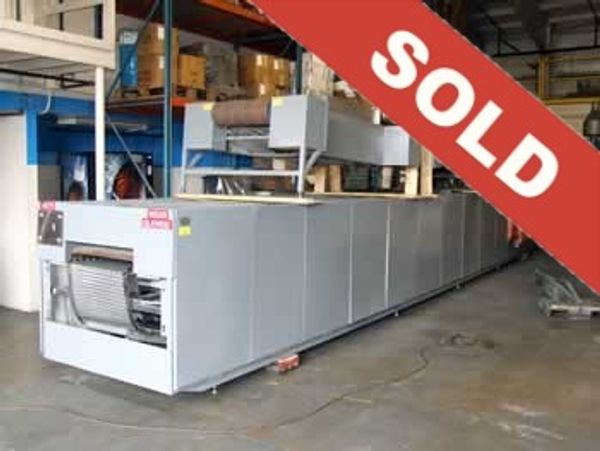

Watkins-Johnson Continuous Mesh Belt Furnace
Year build: 1994, recently refurbished
Description: Watkins-Johnson Model #CA24-250 continuous mesh belt furnace, originally built in 1994 and recently refurbished to factory-new condition. Stored in shrink wrap (fully tested – but not used). 25 Ft OA length. 400 Lbs per hour @ 1,400°F operating temperature & 2,000°F maximum temperature. 480 VAC 3 Phase 60 Hz. Electrically heated. Has new 24” wide SS belt with side plates, new Hi-Watt temperature controllers, new Honeywell hi-limits, new Waukee Flo-Tronic flow meters for nitrogen/hydrogen atmosphere, and new Honeywell QXE paperless recorder. Gas-tight Inconel 601 muffle. All heating elements tested & functional.
14" Mesh Belt Aluminum Brazing Furnace -SOLD!-
E-018
Manufacturer: Unknown
Type: 14" wide Mesh Belt Aluminum Brazing Furnace
Year Built: 1980’s and rebuilt in 1998
Overall Dimensions: Approximately 6’-0” wide x 40'-0” long
Clearance: 8”
Load Table: 3’-0” long
Heating Chamber: Approximately 13'-6” long (2 zones)
Water-Jacketed Cooling Chamber: 20’-0” long
Unload Table: 2'-0” long
Workspace Clearance: 8’ high above belt
Heating: Electric 480/240V/3PH/60 Hz
Zones: Zone I: Dongan 150 kVA Transformer
Zone II: Heavy Duty 150 kVA Transformer
Max. Temperature: 1350°F
Controls: Honeywell Controllers
Honeywell Hi-Limits
General: Rebuilt in 1998 to include new temperature controls, updated control panel, new insulation and paint.
14" wide 314 stainless steel woven mesh belt driven by a Burlick-style drive with Reliance Variable Speed Drive – 24” per minute maximum speed. Hoods and stacks are included.
Heating is provided by newer silicon carbide elements. Power to the elements is supplied by Phase Angle Fired SCR’s.
Furnace was running full production prior to removal.
20-inch wide Brazing Furnace -SOLD!-
E-021

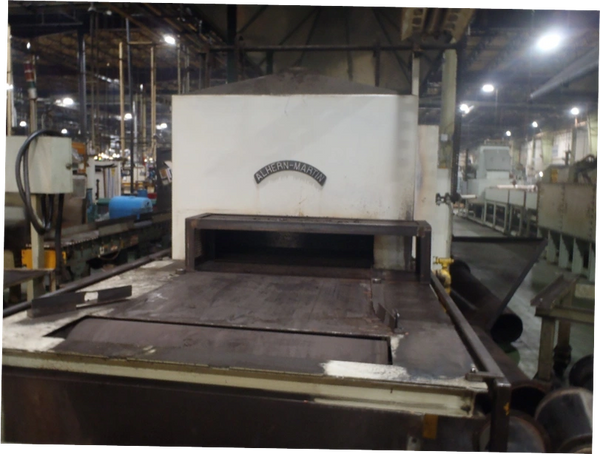

20-inch wide Alhern-Martin Brazing Furnace
Year build: 1997
Description: Alhern-Martin Brazing Furnace with 20-inch wide woven wire mesh belt with 8-inch clearance above the belt. 2100 degrees F maximum operating temperature. Heating is provided by silicon carbide elements above and below the hearth for even heat distribution. 10 Thermocouples with digital readouts every 2’ heat. Thermco hydrogen meter, Endress Hauser Dew Point Meter. 8-foot long load table. 8-foot long unload table. Overall length is approximately 67 feet. This equipment can be viewed upon request.
28-Inch Mesh Belt Furnace -NEWLY REBUILT!-
E-040
28-Inch Alhern-Martin Mesh Belt Furnace
Year Built: 1990, Just rebuilt with all new brick insulation
Description: 28" wide mesh belt electric furnace with maximum temperature of 2,100°F, two control zones. Furnace is 85 feet long, composed of 10' long charge table, 16' long heating chamber, 40' cooling section and 7' discharge table.

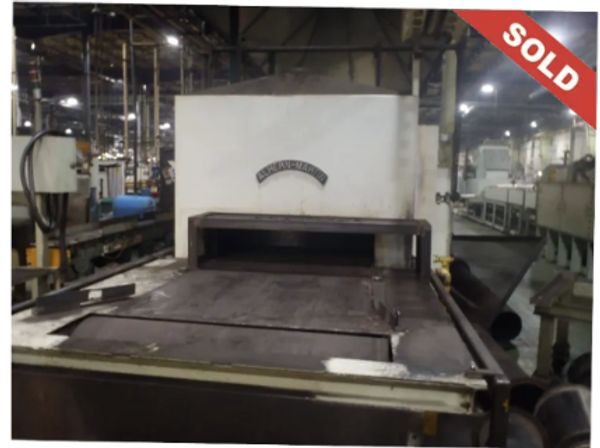

18-inch wide Brazing Furnace -SOLD!-
E-054
18-inch wide Alhern-Martin Brazing Furnace
Year build: 1990s
Description: Alhern-Martin Brazing Furnace with 18-inch wide woven wire mesh belt with 8-inch clearance above the belt. 2150 degrees F maximum operating temperature. The furnace is electrically heated in two (2) zones of temperature control. 30 feet of water-jacketed cooling sections. Eight foot long load table. Eight foot long unload table. Overall length is approximately sixty-one feet. Available for inspection in our facility in Farmington Hills, MI.
36" Wide Mesh Belt Brazing/Annealing Furnace Line
E-089
Alhern-Martin
36" Wide Mesh Belt Brazing/Annealing Furnace Line
Year build: 2007, 3 zones, 420 KW
Serial No: 17300-07
Overall Dimensions: 80' long
Load Table: 7' long
Heating Chamber: 26' 5" long (includes 3' preheat, 6' transition)
Water Jacket Cooling Sections: 8' (1-8' section)
Water Jacket Cooling Chambers: 30' (3-10' sections)
Unload Table: 8" long (includes 2' curtain box)
Workspace Clearance: 10" high above the mesh belt
Heating: Electric 480/3PH/60HZ
Zones: Zone 1 = 65 KW; zone 2 = 230 KW; zone 3 = 125 KW
Maximum Temperature: 2100° F
Controls: Honeywell Termperature Control; Honeywell Hi Limit Control; Eurotherm Chessell Data Recorder; WPI Transformers, HDR SCR,s
General: Heating is provided by silicon carbide elements above and below the hearth for even heat distribution. Thermco hydrogen gas analyzer meter, Endress Hauser Dew Point Meter.
The furnace equipment is located in our Warehouse in Farmington Hills, Michigan.
36" Wide Mesh Belt Brazing Furnace Line
E-090
JL Becker Co.
36" Wide Mesh Belt Brazing Furnace Line
Year build: 1996 (rebuilt in 2013) 3 zones, 375 KW
Serial No: J-2011
Overall Dimensions: 80' long
Load Table: 10' long
Heating Chamber: 27' 5" long (includes 3' preheat, 4' transition)
Water Jacket Cooling Chambers: 20' (2-5' sections, 1-10' sections new in 2014)
Forced Cool Section: 10' 0" long
Unload Table: 10" long (includes 3' curtain box)
Workspace Clearance: 8" high above the mesh belt
Heating: Electric 480/3PH/60HZ
Zones: Zone 1 & 2 = 150 KW; zone 3 = 75 KW
Maximum Temperature: 2100° F
Controls: Honeywell Termperature Control; Honeywell Hi Limit Control; Halmar SCRs, Scott T Transformers
General: Heating is provided by silicon carbide elements above and below the hearth for even heat distribution.
The furnace equipment is located in our Warehouse in Farmington Hills, Michigan.
36" Wide Mesh Belt Brazing Furnace Line
E-092
JL Becker Co.
36" Wide Mesh Belt Brazing Furnace Line
Year build: 2011-12 4 zones, 550 KW
Serial No: B3920
Overall Dimensions: 108' long
Load Table: 8' long
Heating Chamber: 40' long (includes preheat & transition)
Water Jacket Cooling Chambers: 30' (3 10-foot sections)
Forced Cool Section: 20' long (Two 10-foot sections, fan in the coolers)
Unload Table: 10" long (includes 2' curtain box)
Workspace Clearance: 12" high above the mesh belt
Heating: Electric 480/3PH/60HZ
Zones: Zone 1 & 2 = 150 KW; zones 3 & 4 = 125 KW
Maximum Temperature: 2200° F
Controls: Honeywell Temperature Control; Honeywell Hi Limit Control; Halmar SCRs, Scott T Transformers; Allen Bradley Panelview Plus 1250 PLC
General: Heating is provided by 88 silicon carbide elements above and below the hearth for even heat distribution.
**This furnace is loaded with options**
The furnace equipment is located in our Warehouse in Farmington Hills, Michigan.
Contact us for pricing
